Multifunctional 20km Video Digital Optical Converter 0 - 120Kbps

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pairs/month

Delivery Time : 5-8 working days

Packaging Details : package and carton

Fiber Distance : 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km

Rate : 0-120Kbps

Baud Rate : 300 Baud to 115,200 Baud

Power rate : 2W, 5-40V

Static protection : 15KV electric static discharge (ESD) protection

Operation Temperature : -25°C to +70°C

Storage Temperature : -40°C to +85°C

Storage Humidity : 5%~95% non-condescending

Contact Now

Multi-functional 20km Video Fiber Converter with Audio/RS485/Video/RS232/Alarm/Ethernet

Technical Parameters

Standard	EIA /TIA RS232, RS-422, RS-485
Fiber Connector	SC standard, ST/FC optional
Fiber Distance	50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector	RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance	RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate	0-120Kbps
Baud Rate	300 Baud to 115,200 Baud
RS-485	D+, D-, GND
RS-422	R+, R-, T+, T-, GND
RS-232	IN, OUT, GND
Power rate	2W, 5-40V
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Operation Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5%~95% non-condescending

Overview

Multi-functional 20km Video Fiber Converter with Audio/RS485/Video/RS232/Alarm/Ethernet is an industrial grade RS-232 / RS-422/ RS-485 to fiber optic converter which converts a standard RS-232 / RS-422 / RS-485 transceiver to a fiber optic link as to extend the serial signal up to 2Km on multimode fiber and 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.

Product Features

Wide temperature range

Plug-and-play, hot pluggable
Extends RS232/RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
Industrial Wall Mount Compact size rugged case
Protects against electrical interference and chemical corrosion Built-in surge and static protection
Diagnostic and unit indicator LEDs

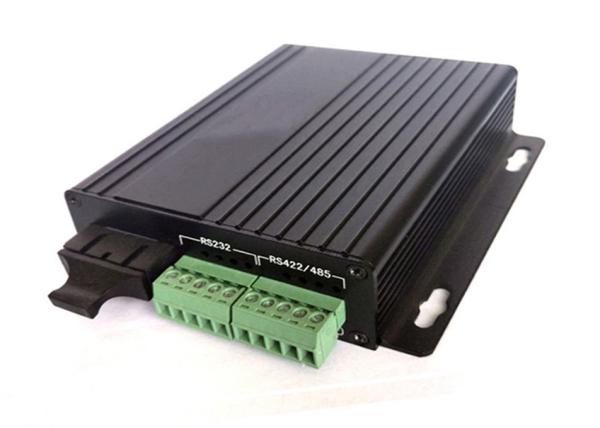

Product Picture

Multifunctional 20km Video Digital Optical Converter 0 - 120Kbps

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed

Multifunctional 20km Video Digital Optical Converter 0 - 120Kbps
