Industrial Managed SFP Fiber Switch with Full Gigabit 8 POE Ethernet and 8 SFP Ports
Technical Parameters
| Product Name | Industrial Managed Poe Switch |
| Port | 8 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features | Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards | EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information | Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Product Features
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
8 x 1000Mbps SFP fiber port
4KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard,half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature:-40 ° ~85 ° c
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control
(input/output direction), storm suppression ,differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

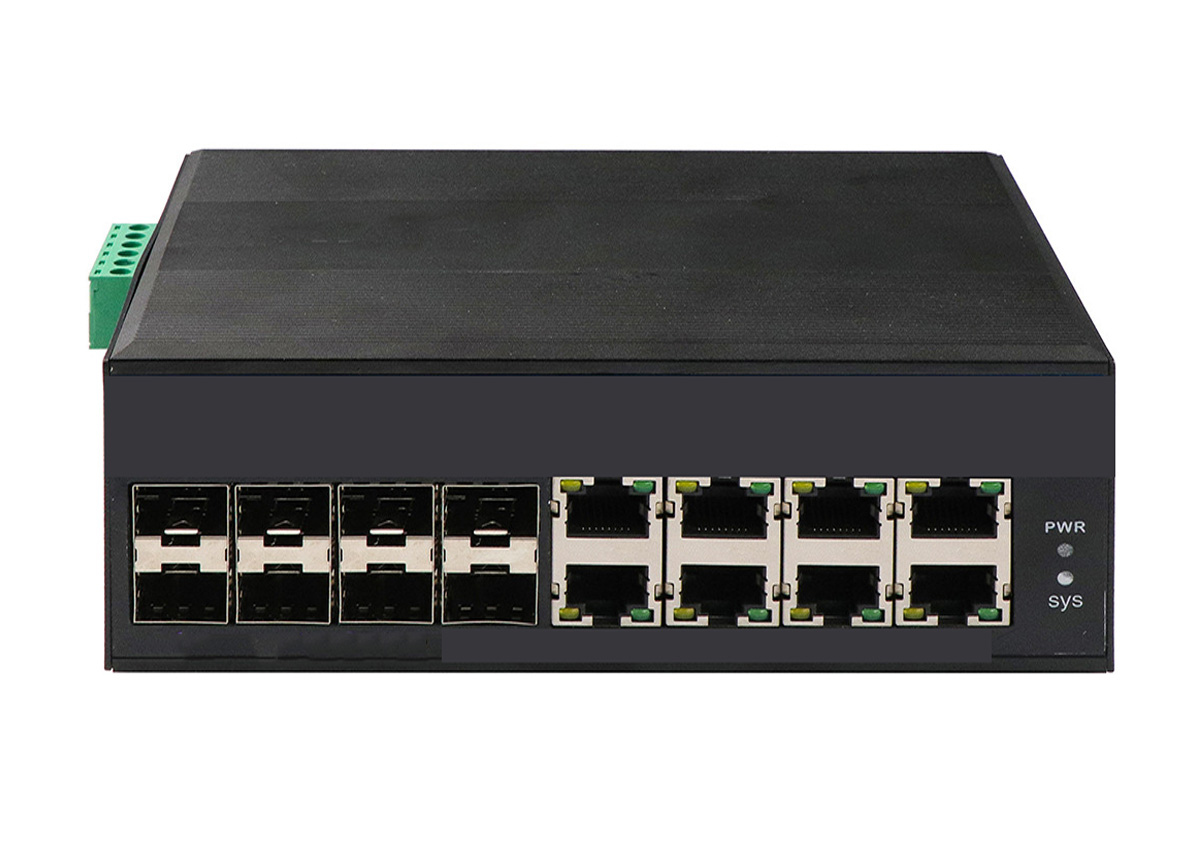

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
